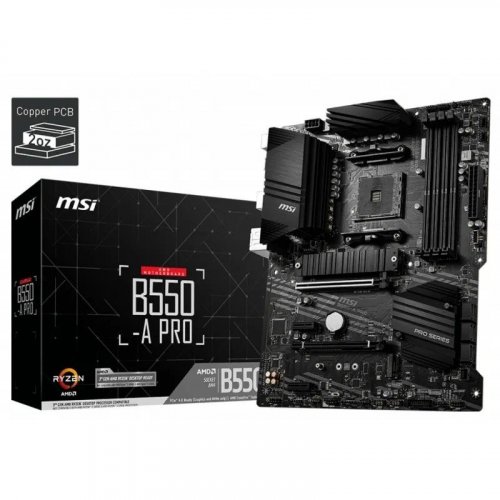

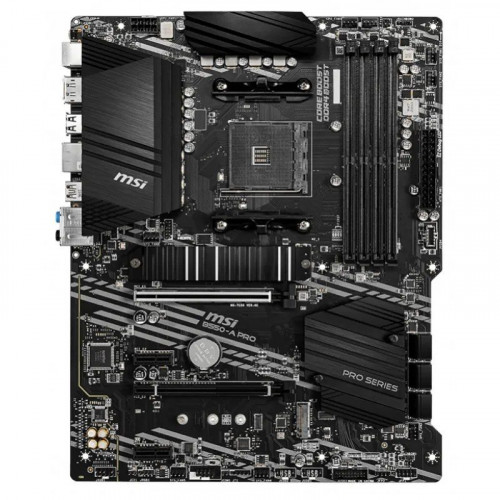

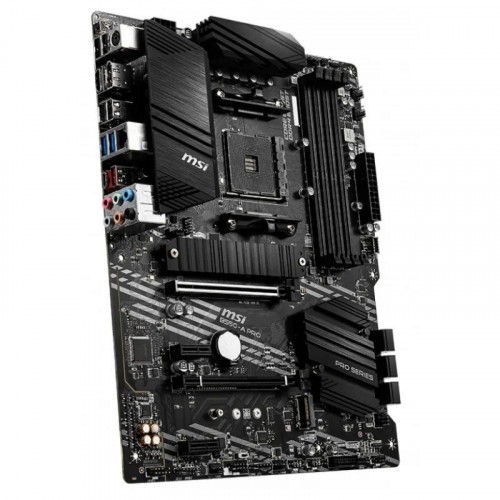

MSI Placa Base B550-A PRO ATX AM4

Marca msi

Modelo B550-A PRO

( 911-7C56-08S )

Plataforma - ATX (30.5 cm x 24.4 cm)

Chipset - AMD® B550 chipset

CPU

Soportados

- Soporta AMD® RYZEN™ 3ª Generación con Socket AM4

Memoria - 4 x DDR4 memory slots, soporta hasta 128GB

- Soporta DDR4 1866/2133/2400/2667/2800/2933/3000/3066/3200 MHz por JEDEC

- Soporta DDR4 2667/2800/2933/3000/3066/3200/3466/3600/3733/3866/4000/4133/4266/4400 + MHz por A-XMP OC MODE)

- Dual channel memory architecture

- Soporta non-ECC UDIMM memory

- Soporta ECC UDIMM memory (non-ECC mode)

- Soporta un-buffered memory

Slots Expansión

- 1 x PCIe 4.0/ 3.0 x16 slot (PCI_E1)

- 1 x PCIe 3.0 x16 slot (PCI_E3), supports x4 speed

- 2 x PCIe 3.0 x1 slots

Gráficos - 1 x DisplayPort, 4096x2160 @ 60Hz

- 1 x HDMI, 4096x2160 @ 24Hz

- Memoria compartida máxima de 2GB

Multi-GPU

- Soporta 2-Way AMD CrossFire™ Technology

Puertos E/S,

Conectores

Internos

- 1 x 24-pin ATX main power

- 1 x 8-pin ATX 12V power

- 6 x SATA 6Gb/s

- 2 x M.2 slots (M-Key)

- 1 x USB 3.2 Gen 1 5Gbps Type-C

- 1 x USB 3.2 Gen 1 5Gbps

- 2 x USB 2.0

- 1 x 4-pin CPU fan

- 1 x 4-pin water-pump fan

- 6 x 4-pin system fan

- 1 x Front panel audio

- 2 x System panel

- 1 x Chassis Intrusion

- 1 x 4-pin RGB LED

- 2 x 3-pin RAINBOW LED

- 1 xTPM module

- 1 x Clear CMOS jumper

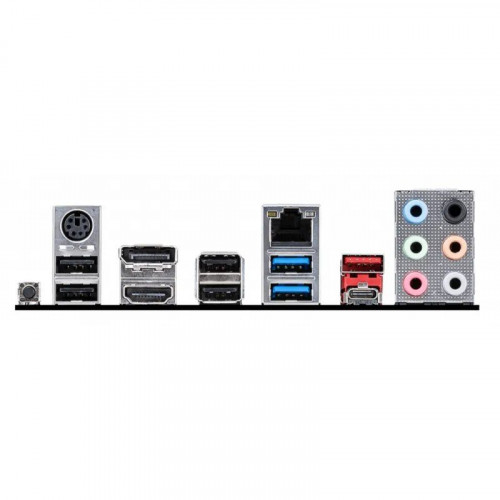

Externos

- Keyboard / Mouse

- DisplayPort

- LAN

- HD Audio Connectors

- Flash BIOS Button

- USB 2.0

- HDMI

- USB 2.0

- USB 3.2 Gen 1 5Gbps Type-A

- USB 3.2 Gen 2 10Gbps Type-A+C

Otras

Características

Almacenamiento

- 6 x SATA 6Gb/s

- 2 x M.2 slots (Key M)

RAID

- Soporta RAID 0, RAID 1 y RAID 10 para dispositivos SATA

- Soporta RAID 0 y RAID 1 para M.2 NVMe RAID

USB

- 3 x USB 3.2 Gen 1

- 8 x USB 2.0

- 2 x USB 3.2 Gen 2

- 2 x USB 3.2 Gen 1

Red

- 1 x Realtek® RTL8111H Gigabit LAN

Audio

- Realtek® ALC892 Codec

- 7.1-Channel High Definition Audio

Montaje

- 9 agujeros de montaje

S.O. Compatible

- Soporte para Windows® 10 64-bit

Fecha Revisión 02-09-2020 por MSB
